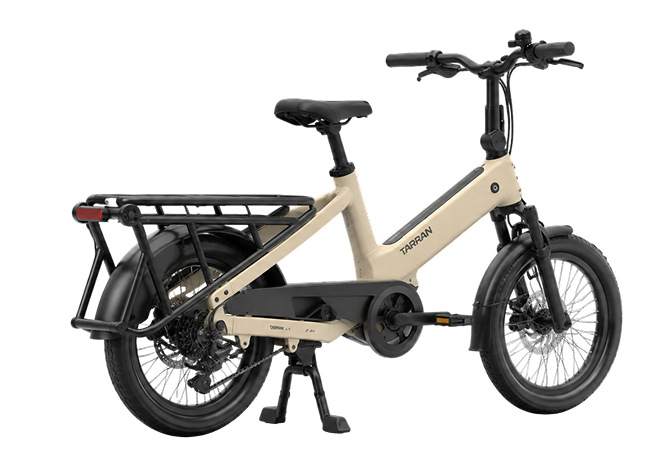

Built Around Family Cargo
Pre-sale starts Nov 9 – pricing from €2499
85Nm
Max. Hub Torque
215kg
Max. Gross Weight
105kg
Max. Rear Capacity
160km
Max. Range
25km/h
Pedal Assist
693Wh
Battery Capacity

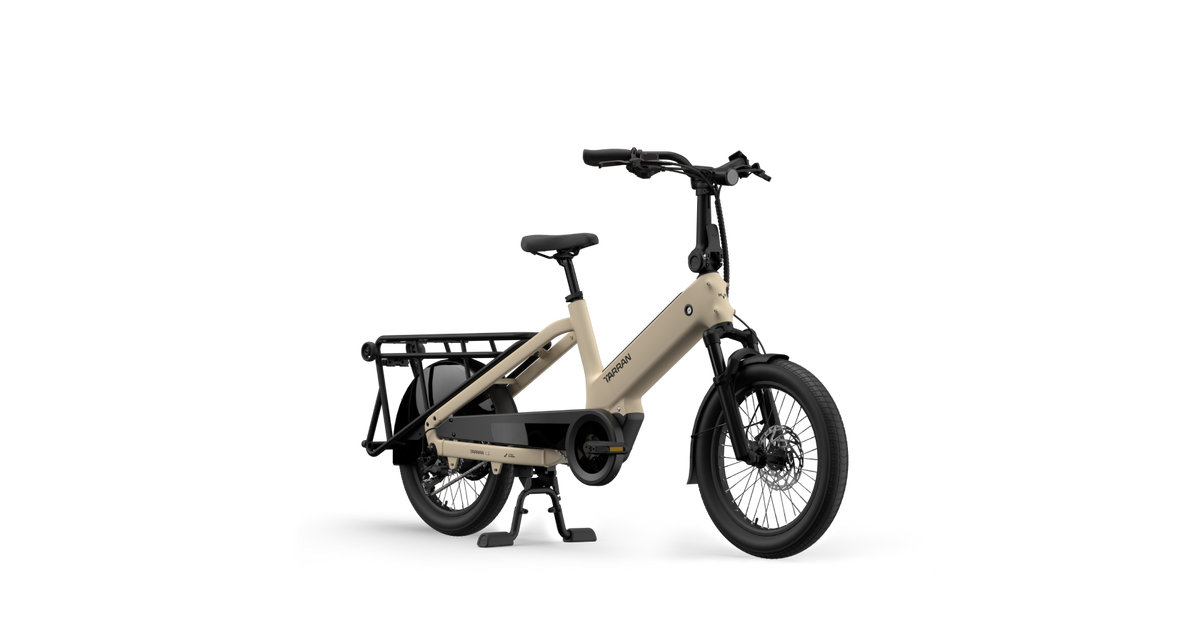

Built on the same proven platform as the acclaimed L1 Series, it combines stable handling, passenger-ready details, and flexible carrying for family cargo.
The proven L1 Series platform supports stable handling and flexible family carrying.
Stay calm when fully loaded, with the power and range to carry the day, dependable braking, and steady support when the ride pauses.
Power, range, braking, and steady parking support for loaded rides.
From sharing the bike between riders to parking, charging, and storing, L1h is built around the routines families repeat every day.
Easy to share, park, charge, and store every day.
Family Cargo Changes
What A Bike Needs To Be.
L1h Brings Carrying Capacity And Everyday Ride Comfort Together In One Thoughtfully Shaped Platform.
With refined cargo geometry and cargo-tuned weight distribution, helping L1h feel stable and predictable with kids or cargo on board.
Extended rear rack with native MIK HD integration fits up to two compatible child seats, including Thule Yepp 2, or cargo accessories without extra adapters.
Bring the panniers you already know and trust. L1h supports common third-party options, including Ortlieb, with mounting for up to two bags per side.
Chain cover and rear fender included to help protect the passenger area during daily family rides.
A low 50 cm step-through frame makes it easier to get on, get off, and stay confident during loaded family rides.
215kg Max
Gross Weight
125kg Max
Rider Weight
105kg Max
Rear Load
20kg Max
Front Load
60kg Max
Trailer Load

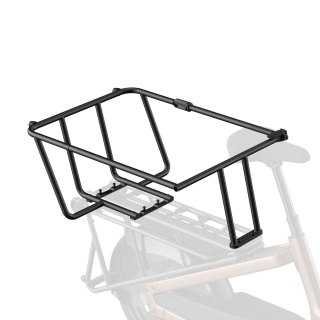

Lockable side-entry protection that helps children board easily and keeps the passenger area enclosed.

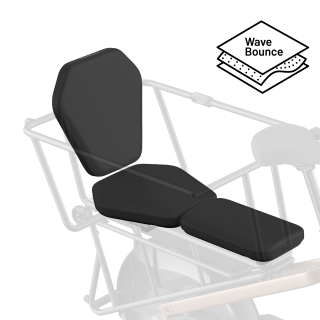

High-rebound ETPU cushioning shaped for child passengers, with modular pads for a comfortable ride.

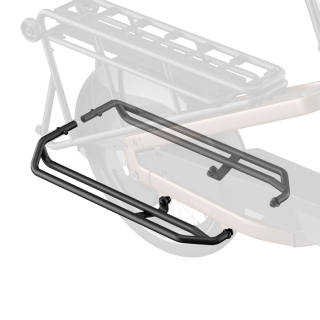

Dedicated foot support that gives children a stable place to rest their feet throughout the ride.

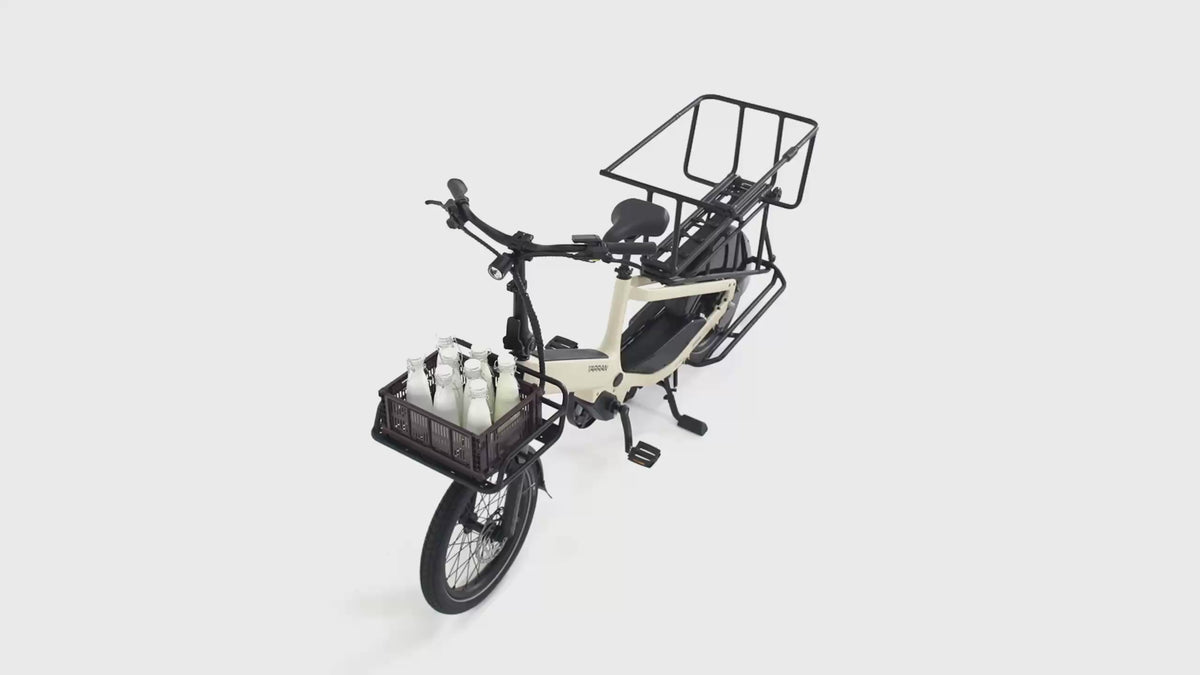

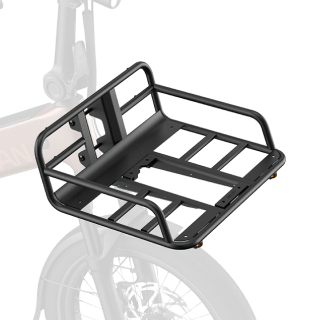

20 kg front cargo platform compatible with 300 × 400 mm Euroboxes for bags, work gear, and daily essentials.

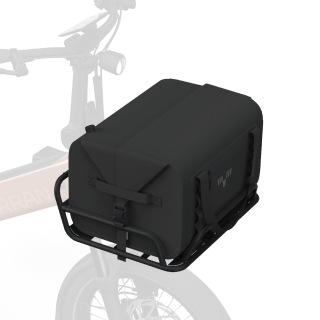

30 L front storage with a 27 L insulated insert for groceries, lunches, and everyday commuting.

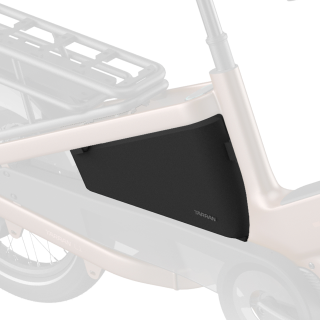

Compact storage for tools, spare essentials, extra battery and small items kept close and easy to reach.

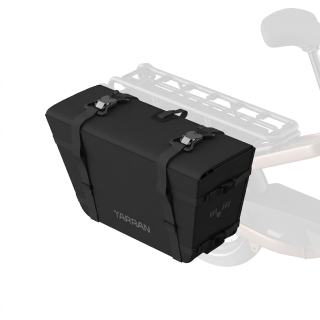

Waterproof panniers with 47 L per bag, expandable to 70 L, with Fidlock fasteners for quick attachment.
Lockable side-entry protection that helps children board easily and keeps the passenger area enclosed.
Compact storage for tools, spare essentials, extra battery and small items kept close and easy to reach.

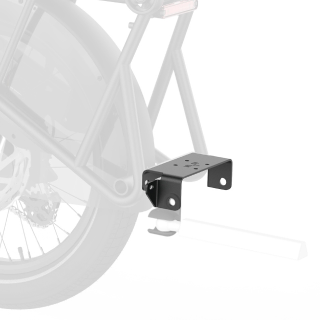

Supports up to 60 kg and connects the bike to compatible Thule or Burley-style trailers.
High-rebound ETPU rear passenger setup with modular seat pads and a backrest for adults.

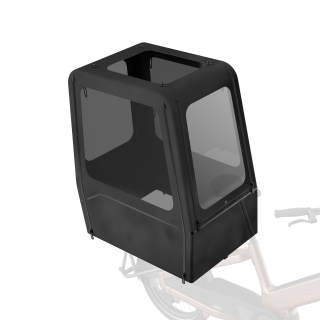

Weather coverage designed for two children, helping keep passengers comfortable across changing weekend conditions.

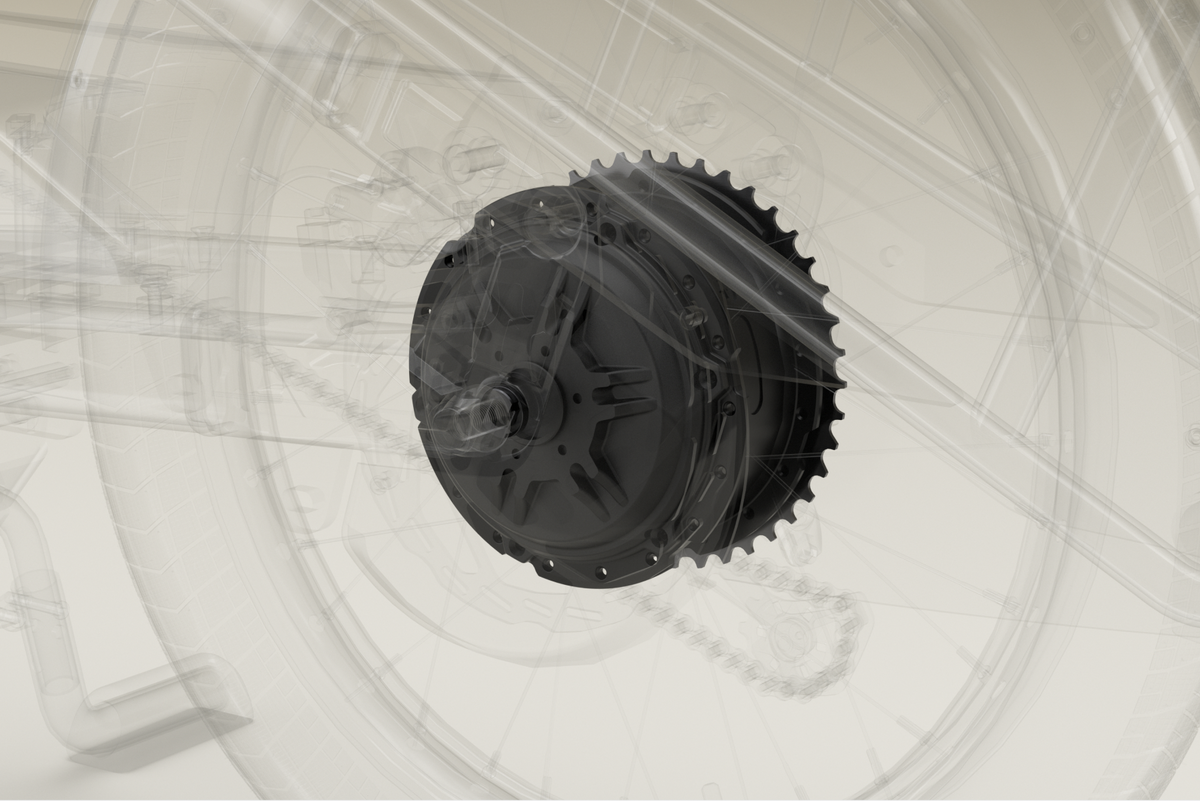

Up to 85 Nm of boost torque adds the pull needed for loaded starts and hills, giving families extra help when kids or cargo make the ride heavier.
85 Nm
Max. Torque
250 W
Rated Power

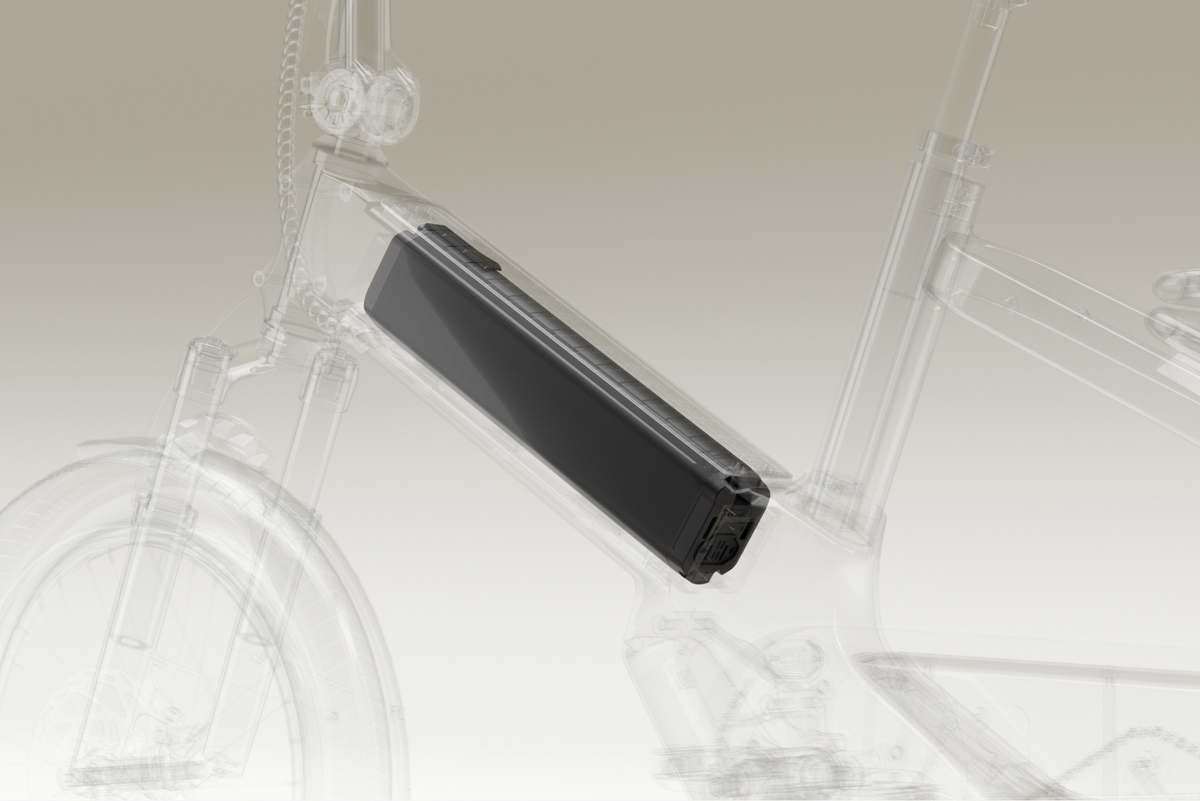

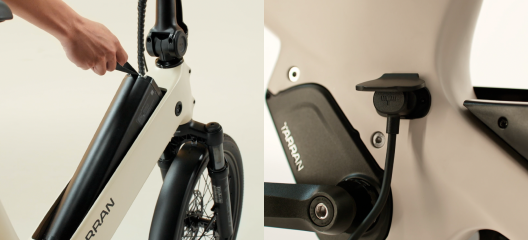

The 693 Wh battery uses Samsung cells for daily family riding. UL 2849 certification supports electrical-system safety, while the optional GaN fast charger offers quicker top-ups.
160 Km
Max. Range*
436 W
GaN Fast Charger*
*Unloaded test with 70kg rider in Eco mode.
*Optional accessory. Charge 80% in approx. 1.5 hrs
The Lockable Kickstand helps prevent unexpected folding while the bike is parked under load, adding control during loading and boarding.

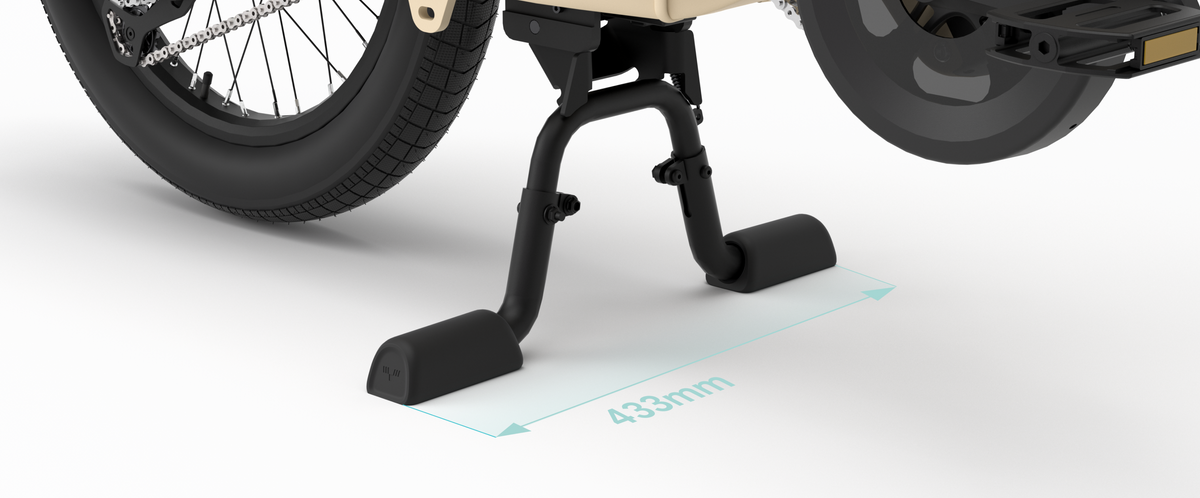

TARRAN Syncstand’s wide rubber feet create a larger contact area with the ground, giving L1h a steadier base while children climb aboard or cargo is loaded.
Thoughtful details simplify the moments around every ride, so L1h fits naturally into the rhythm of family life.
155-200 cm Rider Height
Protection
Compliant with CE, UL 2849, EN 17860,
RoHS, and REACH SVHC, certified by TÜV Rheinland.
Local support - test rides, service, and advice
Coverage on the frame for structural defects
2-year coverage on electrical parts
Delivered to your door, free of charge
Available even after warranty
Quick response within 24 hours
 |  |  |
|---|---|---|

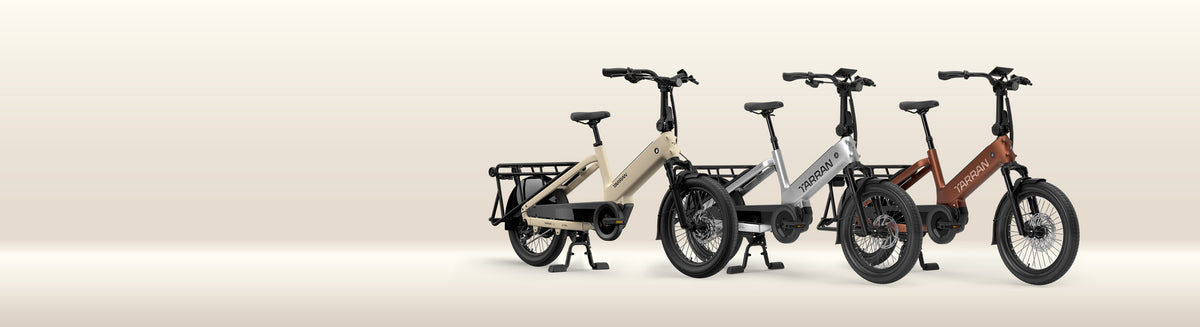

85 Nm Max. Hub Torque | 100 Nm Max. Mid Drive Torque | 100 Nm Max. Mid Drive Torque |
693 Wh Battery Capacity | 693 Wh Battery Capacity | 693 Wh Battery Capacity |
Up to 160 km Max. Range | Up to 170 km Max. Range | Up to 170 km Max. Range |
215 kg Max. Gross Weight | 215 kg Max. Gross Weight | 215 kg Max. Gross Weight |
105 kg Max. Rear Load | 105 kg Max. Rear Load | 105 kg Max. Rear Load |
MicroSHIFT Drivetrain | MicroSHIFT ADVENT X, Drivetrain | Enviolo AUTOMATIQ Pro Drivetrain |
SyncStand with Kickstand | SyncStand E-lock Kickstand | SyncStand Auto Kickstand |
Two-stage adjustable seatpost Seatpost | Lever-actuated dropper post Seatpost | Electronic dropper post Seatpost |
BAFANG Hub-drive Motor, 75Nm rated torque (85Nm boost torque), Rated continuous power 250W, Maximum power 750W
Tarran TBT01 693Wh (47.19V/14.7Ah) Capacity, removable
Controller with kickstand lock, lighting, assistance level, walk assist control and a built-in color sreen, providing essential riding data and Type-C output charging
/

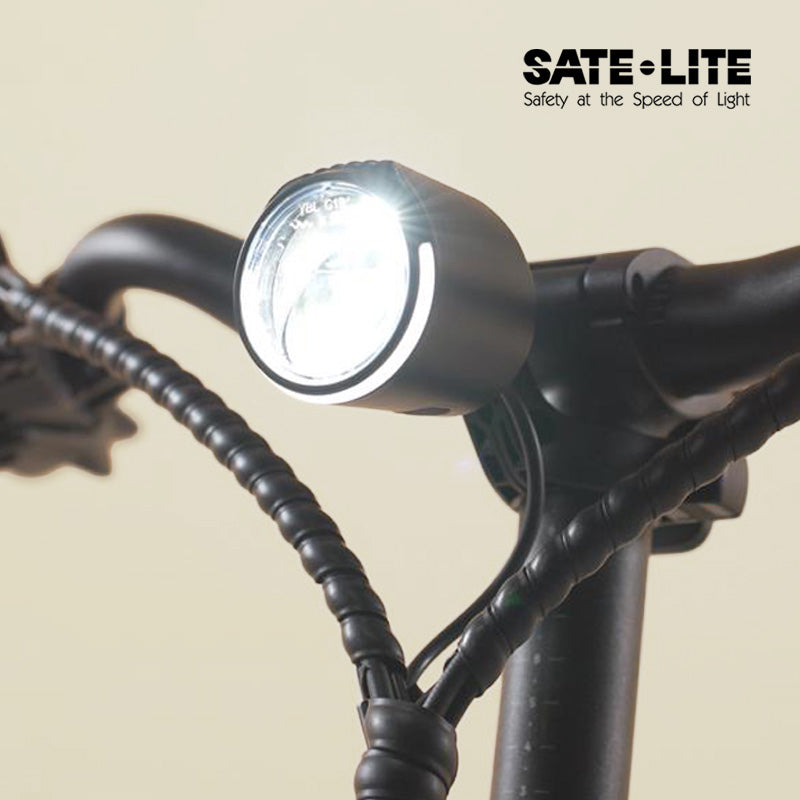

SATE-LITE C19, 150Lux

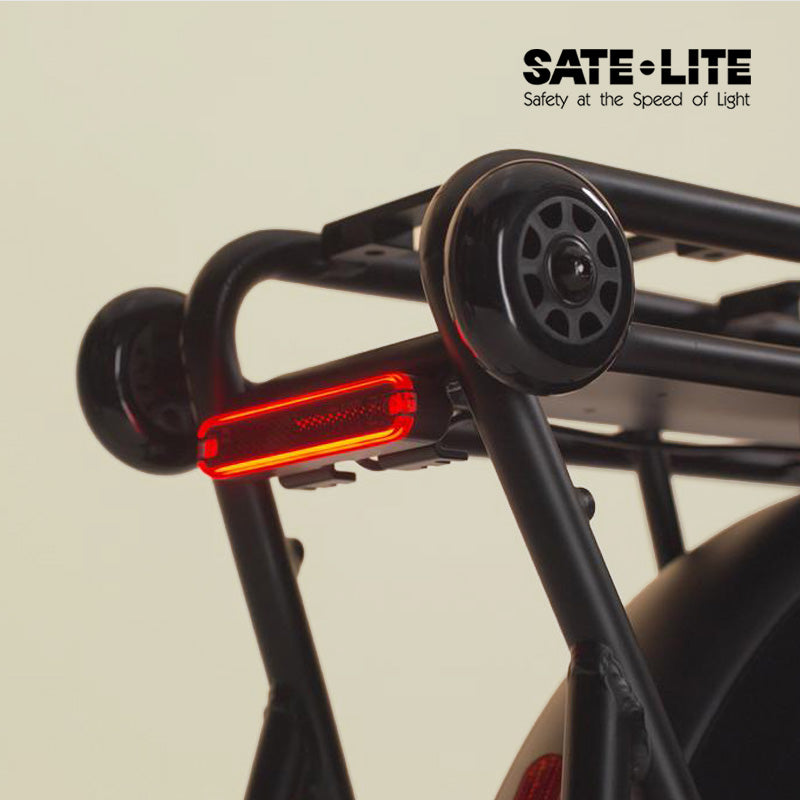

Sate-lite M18, increased brightness under deceleration, powered by main battery
Tarran Kickstand with cable-actuated lock
48V/3A
Tarran L1 Alloy Frameset, high load capacity, 105kg-rated rear rack (MIK HD compatible), supports optional 20kg front rack, smooth surface finish

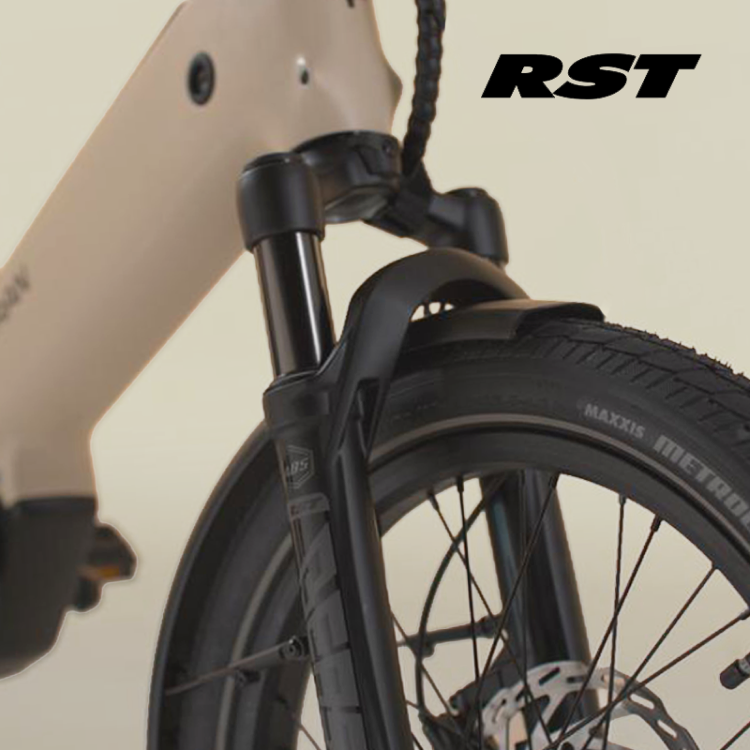

RST BEAST 20 T, 15*110, 70mm travel
Ergonomic Alloy Handlebar, width 640mm

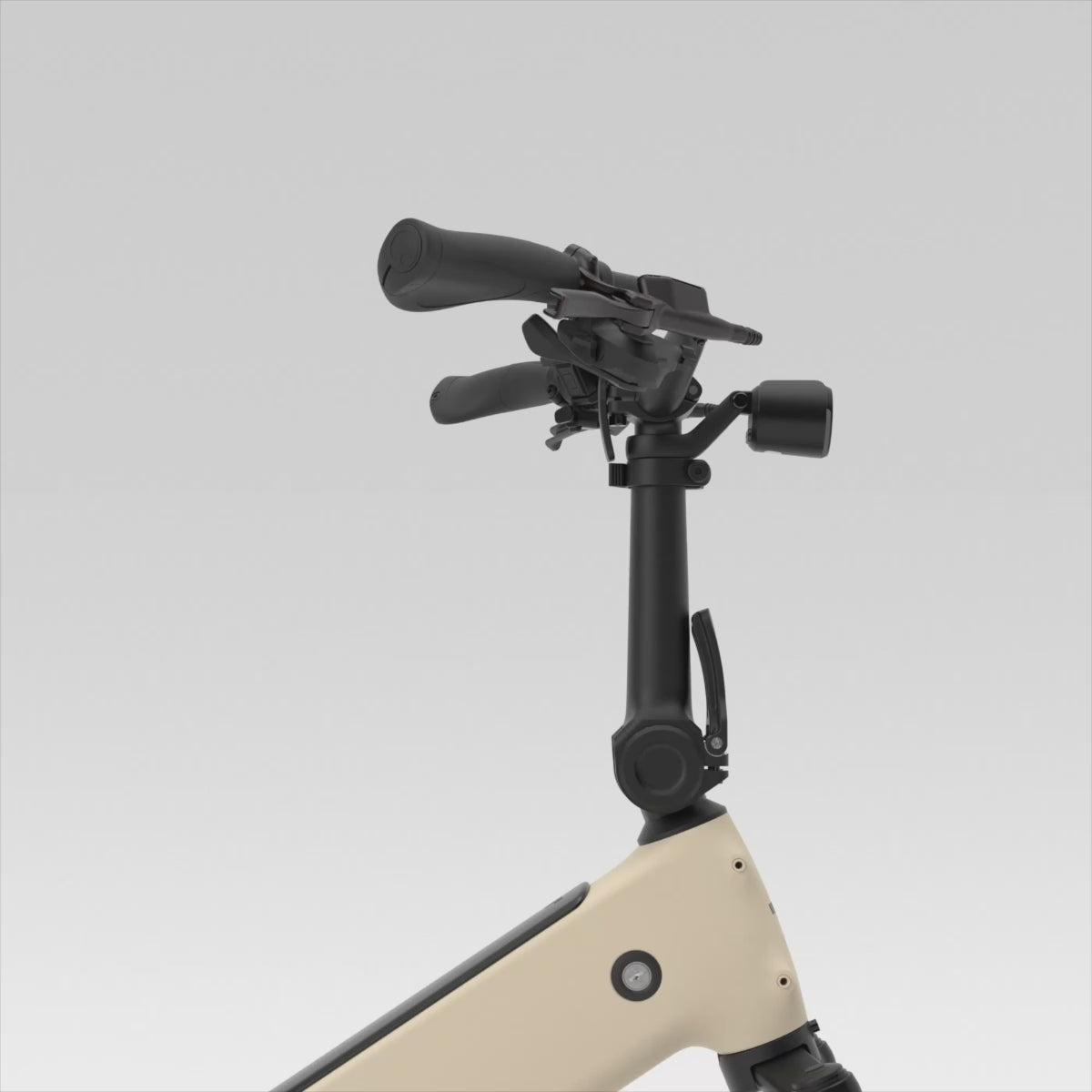

Tarran Handlepost, adjustable height and angle
Velo Ergonomic Grips

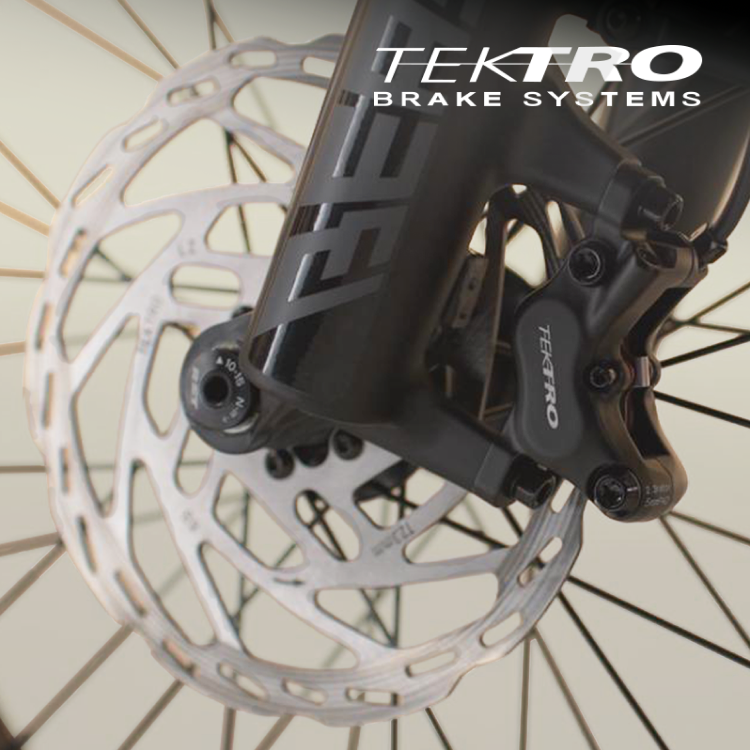

Tektro HD-E5140, 4P, 2.5-finger, 180MM, 2.3MM Thickness, 6-bolt

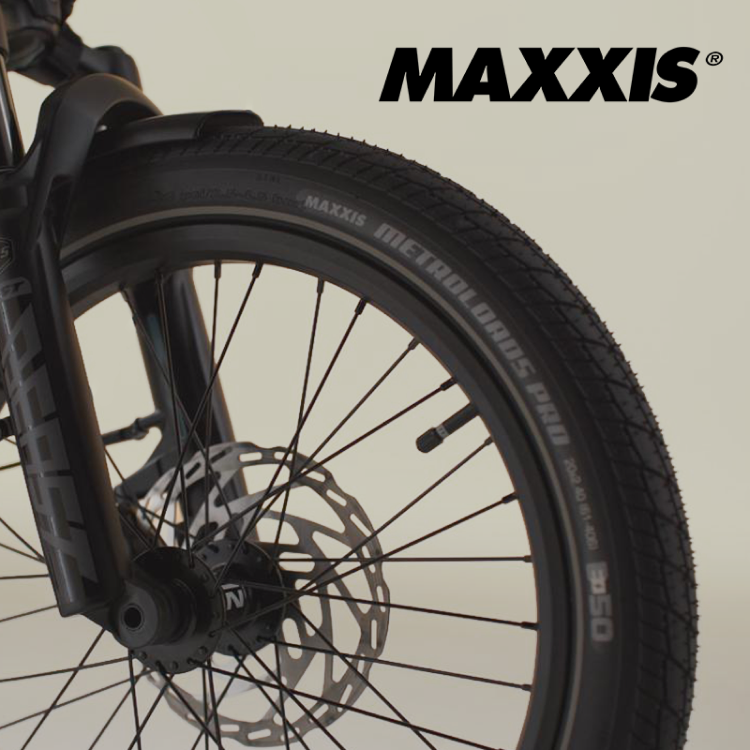

Maxxis Metroloads Pro, 20x2.4
Tarran 20'' Cargo-specific wheelset, Novatec Front Hub, 15x110mm, 36H/13G, 6 Bolts, Black
Tarran 20'' Cargo-specific wheelset, Hub-drive Motor, 36H/12G, 6 Bolts, Black
Velo Commuter Saddle
microShift TS200-8R 8-speed

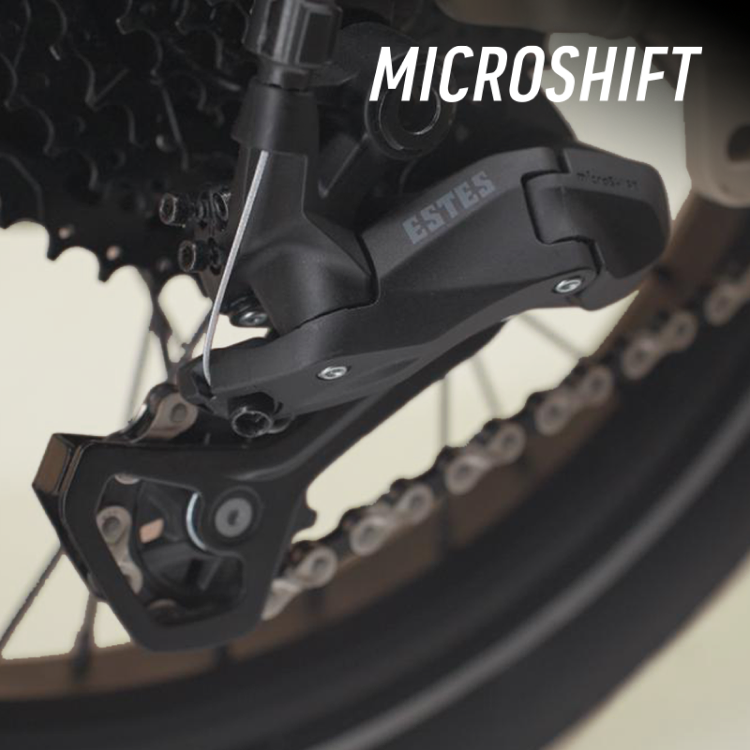

microShift RD-M220M 8-speed
Microshift CS-H083 11-42T

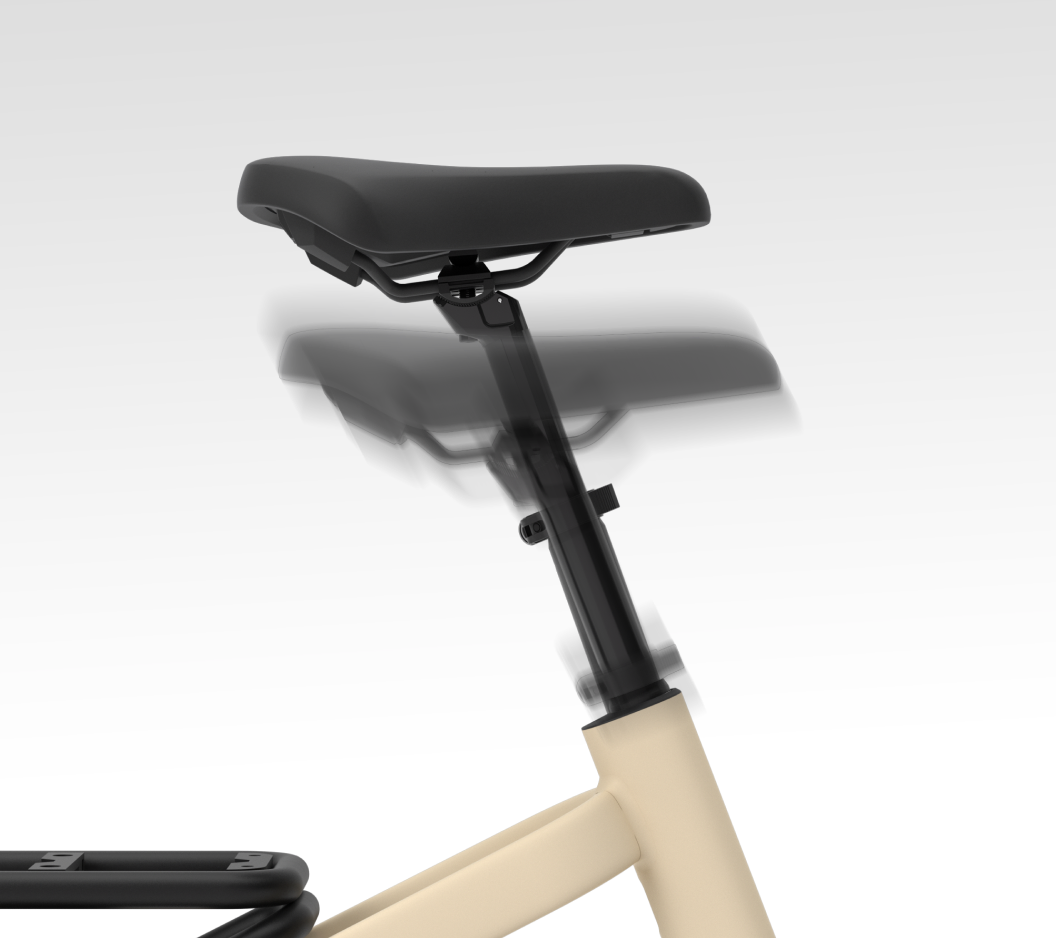

Tarran Telescope seatpost
Prowheel Chainring, Steel, 48T
KMC e8 Sport EPT
Alloy Ebike Crank, 160mm
25km/h
≈37kg
215kg
215kg
125kg
105kg
155cm-200cm
